Midiman Releases Delta 410 Card in US
Midiman
Posted 2001-12-13

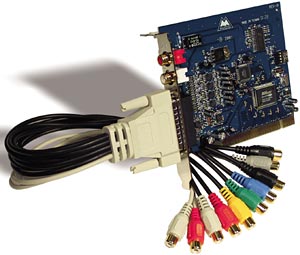

Due to the success in overseas markets, the M-Audio division of Midiman Inc. is now shipping the Delta 410 audio interface to North and South American markets. The Delta series are fully expandable, universally compatible PCI-based analog and digital audio cards for the Macintosh and PC platforms. The Delta 410 is an audio recording and playback solution for home studio multi-tracking and multi-channel playback.
The Delta 410 functions as a 4-input, 10-output digital recording/playback interface. Two analog inputs and eight analog outputs plus coaxial S/PDIF I/O provides you the highest quality analog (unbalanced) and digital I/O available -- all up to 24-bit data width and any sampling rate from 8kHz to 96kHz. The 8 analog outputs easily accommodate 5.1 to 7.1 surround applications, while the S/PDIF output allows AC3 or DTS to be streamed to an external decoder, making the Delta 410 an ideal computer-based home theatre companion.
The Delta 410 benefits from the extensive driver support for the entire Delta series, which includes Windows XP and Mac OS X drivers as well as full ASIO, EASI, and GSIF support.
Product Features & Specifications:
4x10 24-bit/96khz full-duplex recording interface.
PCI host card with external, color-coded breakout cable.
2x8 analog I/O, unbalanced on gold-plated RCA connectors, with output line level adjustments selectable within the Delta Control Panel.
S/PDIF digital I/O on gold-plated RCA connectors located on the PCI card. A variety of settings, including AC3 or DTS surround and SCMS copy protection schemes, can be set via the Delta Control Panel.
High dynamic range (A-weighted measured): D/A 101.5 dB, A/D 99.6 dB.
Low distortion (measured THD @ 0dBFS): A/D and D/A less than 0.002%.
Frequency Response: 22-22kHz, -0.2,-0.4dB @48kHz; 22-40kHz, -0.2,-0.7dB @96kHz
All data paths support up to 24bit/96kHz performance, no upgrades necessary.
Comprehensive digital mixing, routing, and monitoring capabilities with included Delta Control Panel software.
Hardware sample-accurate sync will allow linking of multiple Delta units.
Windows 2000/ME and 95/98 multi-card, multi-client drivers with ASIO1 and ASIO2 multi-card, GSIF and EASI drivers included; Windows NT multi-card drivers also included.
Macintosh control panel and drivers with ASIO1, ASIO2, and legacy ASIO support for OS 8.5.1 or higher.
For more information, visit their web site at www.midiman.net.
